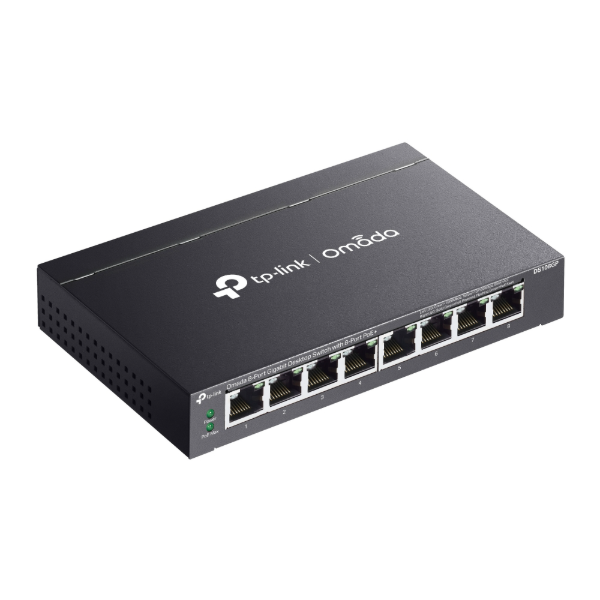

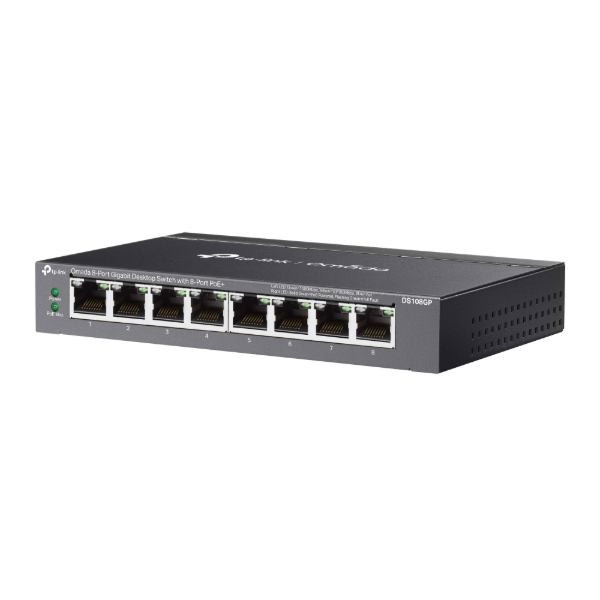

DS108GP

Omada 8-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE+

• 8 × puertos RJ45 10/100/1000 Mbps

• 8 × puertos PoE+ que transfieren datos y alimentación por cable de forma individual

• Funciona con PDs compatibles con IEEE 802.3af/at (dispositivos alimentados)

• QoS 802.1p/DSCP para priorizar y garantizar el tráfico sensible a la latencia

• Soporta hasta 30 W de potencia por cada puerto PoE

• Soporta hasta 65 W de potencia total para todos los puertos PoE*

• Hasta 250 m (820 ft) de alcance para transmisión de datos y energía en Modo Extend

• La recuperación automática de PoE (PoE Auto Recovery) garantiza la operación estable de los dispositivos PoE reiniciando automáticamente los PD que hayan dejado de responder

• Plug and Play. No requiere configuración ni gestión centralizada

ESPECIFICACIONES

HARDWARE FEATURES

Interface

• 8× 10/100/1000 Mbps RJ45 Ports

• AUTO Negotiation

• AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

Physical Security Lock Yes

External Power Supply External Power Adapter(Output: 53.5VDC / 1.31A)

Packet Forwarding Rate 11.904 Mpps

PoE Ports (RJ45) • Standard: 802.3 af/at compliant

• PoE Ports: Ports 1–8

• Power Supply: 65 W

Mac Address Table 4K

Jumbo Frame 16 KB

Switching Capacity 16 Gbps

Dimensions ( W x D x H ) 6.2×4.0×1.0 in (158×101×25 mm)

Max. Power Consumption

• 4.59 W (220/50 Hz no PD connected)

• 75.75 W (220/50 Hz with 65 W PD connected)

Max. Heat Dissipation • 15.66 BTU/h (no PD connected)

• 258.46 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES

Advanced Features

• Compatible With IEEE 802.3af/at Compliant PDs

• IGMP Snooping

• Mac Address Auto-Learning And Auto-Aging

• IEEE802.3x Flow Control

• 802.1p/DSCP QoS

• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)

• PoE Auto Recovery (Ports 1-8)

Transmission Method Store-And-Forward

OTHERS

Certification CE, FCC, RoHS

Package Content

• DS108GP

• Power Adapter

• Installation Guide

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉);

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
