Key Feature

 H.265+/H.265/H.264+/H.264 video compression

 Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth

 Up to 8-ch IP camera inputs

 Up to 4-ch 1080p decoding capability

 HDMI and VGA simultaneous output

Compression and Recording

 H.265+ compression effectively reduces the storage space by up to 75%

 Full channel recording at up to 4 MP resolution

Storage and Playback

 2-ch@4 MP or 4-ch@1080p playback resolution

 1 SATA interface (up to 6 TB capacity per HDD)

Smart Function

 Supports line crossing and intrusion detection

 Smart search for the selected area in the video; and smart playback to improve the playback efficiency

 Automatically search and add network cameras after device is activated

Network & Ethernet Access

 1 self-adaptive 10/100 Mbps Ethernet interface

 HiLookVision for easy network management

NVR-108H-D (D) NVR

 Specification

Video and Audio

IP Video Input 8-ch

Up to 6 MP resolution

Incoming Bandwidth 60 Mbps

Outgoing Bandwidth 60 Mbps

HDMI Output 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

VGA Output 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output Mode HDMI/VGA simultaneous output

Decoding

Decoding Format H.265+/H.265/ H.264+/H.264

Recording Resolution 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Synchronous playback 4-ch

Decoding Capability 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)

Stream Type Video, Video & Audio

Network

Remote Connection 16

Network Protocol TCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™

Network Interface 1, RJ-45 10/100Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA 1 SATA interface

Capacity Up to 6 TB capacity for each disk

Alarm In/Out N/A

USB Interface Rear panel: 2 × USB 2.0

General

Power Supply 12 VDC, 1.5 A

Consumption ≤ 10 W (without HDD)

Working Temperature -10 °C to 55 °C (14 °F to 131 °F)

Working Humidity 10% to 90%

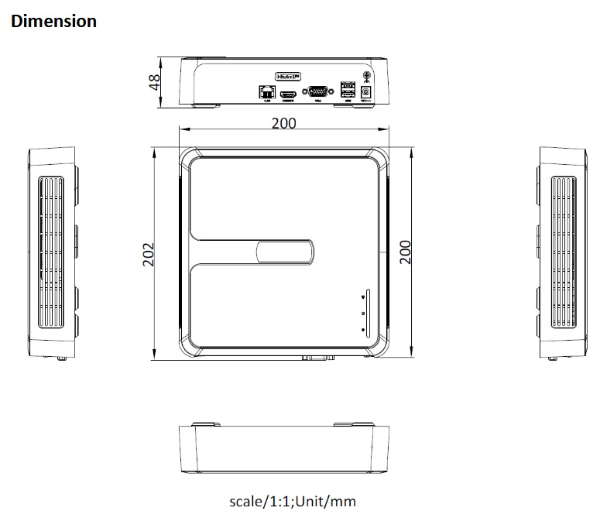

Dimension (W × D × H) 200 × 200 × 48 mm (7.9" × 8.1" × 1.9")

Weight ≤ 1 kg (without HDD, 2.2 lb.)

Certification

CE EN50130-4, EN 61000-3-2,EN 61000-3-3
